Technical Info

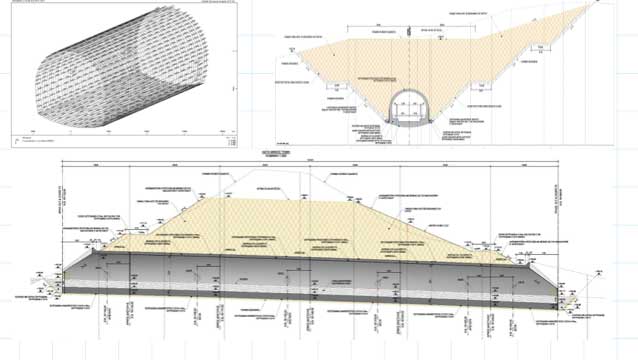

The Lane Cover structure has a total length of 60m with pile foundation connected with a slab. The west side of the structure starts with a concrete wall, columns are following and end with a beam, while the eastern side consists of a concrete wall. The roof slab is 1.2m thick and in the west side as well as on the facades of the lane cover, a parapet 0.5m thick and 1.5m in height is constructed. Three CUT & COVER structures T1, T2 and T0 having lengths of 137m, 208m and 132m respectively. The cross sections are closed domes with a reverse dome and the typical cross section includes 2 traffic lanes 8.0m wide with sidewalk of 1.25m width in both sides. The maximum overburden reaches the 20m. Offered Services: Full Design

• category:

  Underground Structures

• Date:

  2016

• Client:

  PREFECTURE OF ATTIKA
